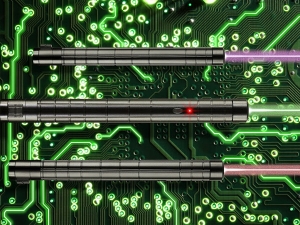

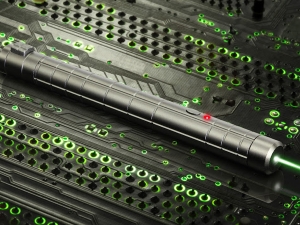

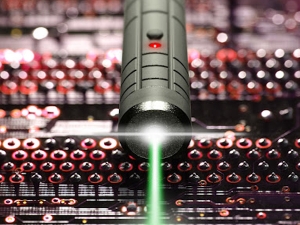

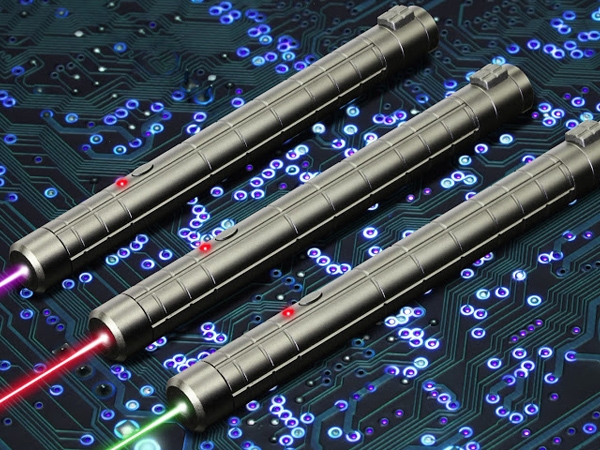

The Nano is an ultra-compact laser that can produce up to 100mW of power, enabling you to point with precision from across a football field if need be. It comes with a digital microprocessor that allows you to instantly switch operating modes.

  • 15mW

Stronger, Brighter, Clearer, Better

A negative-feedback sensor system ensures your laser puts out exactly the same beam from the instant you put them in to the last second of the battery's power - no unprofessional flickering or fading at the critical moment. The Nano is sleek, streamlined, and made to endure: the chassis is crafted from virtually indestructible T6061 aircraft-grade aluminum.

Outside the Workplace

It's a true laser, which means it puts out a powerful enough beam to pop balloons, and you can find myriad ways to experiment with its powers on your own. There's nothing like being able to point a laser at the night sky and show the person with you exactly which star in Orion's belt you're talking about.

Lock and Secure

The Nano is the smallest Class 3R/3B laser that is fully compliant with federal safety regulations. It features our patented MiniLock safety system which includes a removable safety key and remote interlock.

Our Guarantees

We guarantee delivery to every country in the world (except US, CA, AU, CH and NZ) or your money back. We guarantee your laser will be free from defects for a full year from the date of receipt. We guarantee a 30-day money back return policy.

In order to better serve our customers, we are not accepting preorders at this time. Please sign up below to receive updates on this model's availability.

Safety Goggles

Crafted out of lightweight polycarbonate, the LaserShades takes into consideration the factors of laser hazards while still providing style and comfort.

Your laser is:
Technical Specs
Model Name: Nano Series
Laser Product Class: 3R/3B
Size: 16.5 x 170mm
Weight: 70g
Laser Body: T6061 Aircraft-Grade Aluminium
Wavelength: 405nm 532nm 650nm
Min Power: 75mW 5mW/15mW 100mW
Beam Divergence: <0.5 mRad <1.2 mRad <0.5 mRad
Beam Diameter: <4.0 mm <2.5 mm <4.0 mm
NOHD* 122 meters 14/23 meters 141 meters
Beam Distance 0.25 Lux * 6928 meters 4844/8391 meters 12194 meters
Required Eyewear O.D. 1.7
Power Consumption: <500mA
Power supply: 2 X AAA 1.5V
Battery Lifetime: 30-60 minutes
Modes: Momentary On / Off and Constant On
Duty Cycle: Continuous
Expected lifetime: >5,000 hours
Warranty: 12 Months
FDA Accession No.:

The FDA is the United States Department of Health and Human Services. FDA imports use accession numbers to confirm that a manufacturer has followed the reporting requirements for the product being imported.

Laser Body:

The materials that make up the physical casing of the laser. The outer casing also serves as a heat sink for the laser module inside.

Laser Finish:

The final scratch-resistant finish applied to the laser casing.


Visible light has a wavelength range of 400-700 nanometers (nm). Between lasers of equal output power (in mW), lasers closest to the peak visibility wavelength of 555nm will have more range and brightness than other wavelengths of laser light. Green lasers (532nm) are closest to the peak visibility wavelength (555nm), and therefore brighter than red, blue, and purple lasers. A laser's wavelength and power are two of the most important factors in choosing a laser. Please click here to learn about how different wavelengths correspond with relative brightness.

Transverse Mode:

In a laser with cylindrical symmetry, the transverse mode patterns are described by a combination of a Gaussian beam profile with a Laguerre polynomial. The modes are denoted TEMpl where p and l are integers labeling the radial and angular mode orders, respectively.

Max Power:

The maximum power level of the laser beam measured in milliwatts (mW). When choosing a laser a higher output power is brighter than a lower output power. For example, a 650nM @ 5mW laser is brighter than a 650nM @ 1mW laser.

Min Power:

The minimum power level of the laser beam measured in milliwatts (mW). When choosing a laser a higher output power is brighter than a lower output power. For example, a 650nM @ 5mW laser is brighter than a 650nM @ 1mW laser.

Beam Divergence:

A measure of how fast the beam expands as the distance from the source increases. The divergence is measured in milliradians (mrad). A low beam divergence is useful for applications like pointing or free-space optical communications.

Beam Shape:

The width of the laser beam @ aperture measured in millimeters.


The Nominal Ocular Hazard Distance (NOHD) is the distance that a laser beam does not cause immediate or long term damage to a person. Calculated based on a 0.25 second accidental (unaided eye) exposure.

Beam Distance:

The maximum distance (in meters) at which the laser will produce 0.25 Lux of light. It's the standard that flashlights are measured against.

Required Eyewear O.D.:

Indicates whether or not laser protective eyewear is needed, and the necessary O.D. (optical density) of the eyewear for the laser wavelength being used. The indicated O.D. is the minimum O.D. sufficient to protect the user against a momentary intrabeam or specular reflection exposure.

Power Consumption:

The consumption of energy in the form of electricity. The average power consumption of an incandescent night light is 4W.

Power Supply:

The source by which the laser is powered.

Battery Lifetime:

The average amount of time the battery can last on a single charge.


The switches that must be engaged to turn the laser on.


The available laser beam modes once the laser is activated.

Duty Cycle:

The time cycle of which the laser can be active without causing damage to the laser module.

Expected Lifetime:

The average expected lifetime that the laser module can be in active use.


The time period for which any damaged or dysfunctional laser resulting from manufacturer's defects or workmanship will be replaced with a new product of the same model. Any attempted disassembly by a user will void the product warranty and may irreparably damage the product. We warrant all laser products sold on to be free of defects in material and workmanship.


Gear Included

Includes pair of LaserShades safety goggles and holster.

Download User Manual

Download the Nano User Manual for detailed laser usage.
